3V800

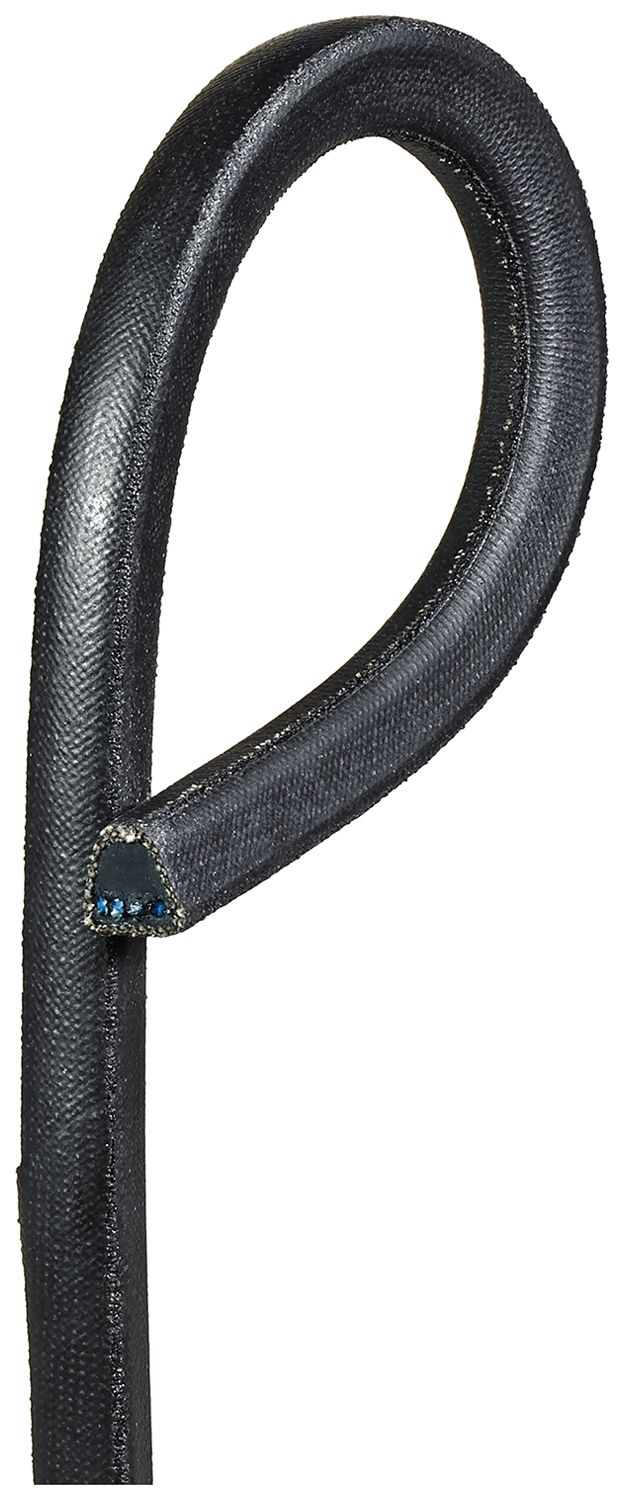

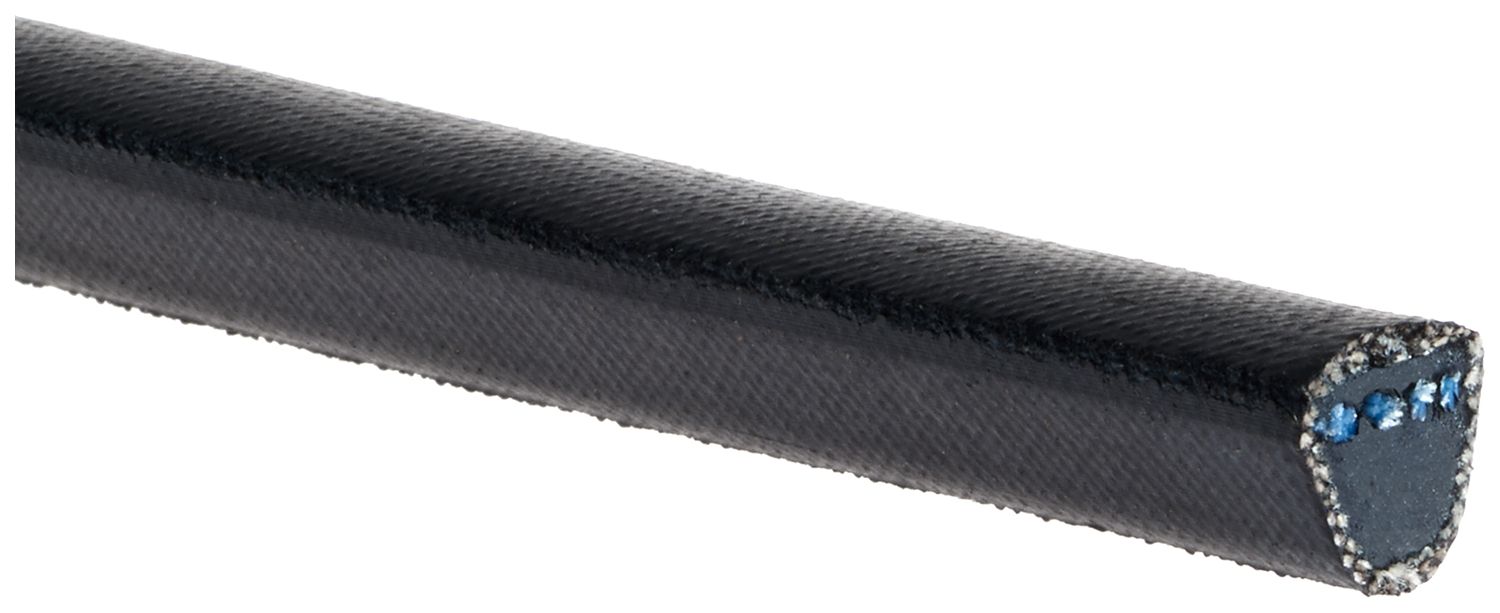

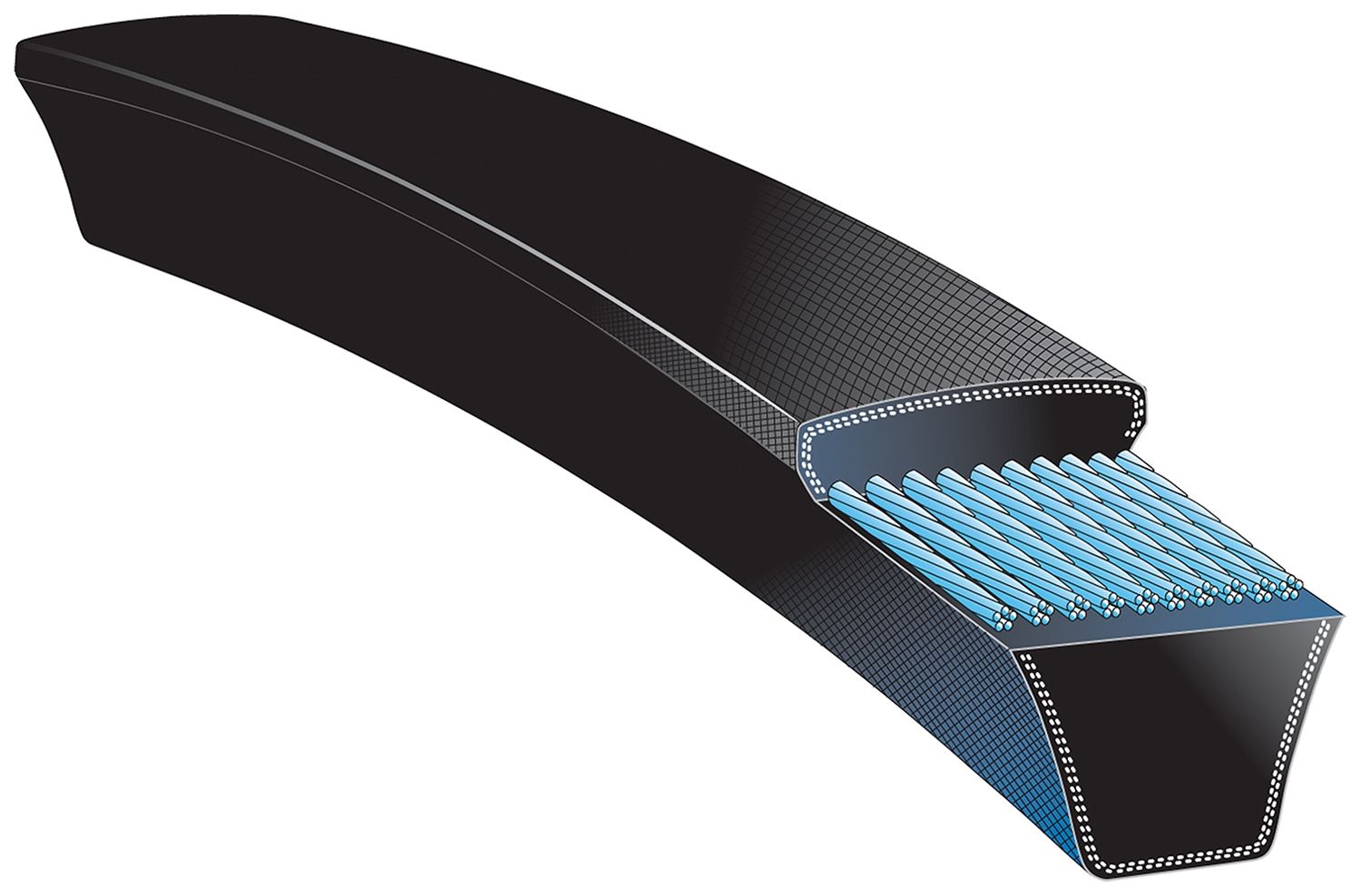

Gates Super HC V-belts combine the strength of a wrapped belt construction with the economies of a narrow section V-belt. It transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This significantly cuts the overall drive cost. Super HC V-belts also have exclusive Gates construction features for longer life on your drives. Up to 300 percent capacity increase over classical belts. Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life. Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration. Belt Edge is machined for even pulley groove contact resulting in smoother running, less slip and wear. Meets RMA oil and heat resistant standards and static conductivity requirements. Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C). NOTE: Available in 3V, 5V, and 8V cross-sections as well as Super HC PowerBand joined V-belts.
