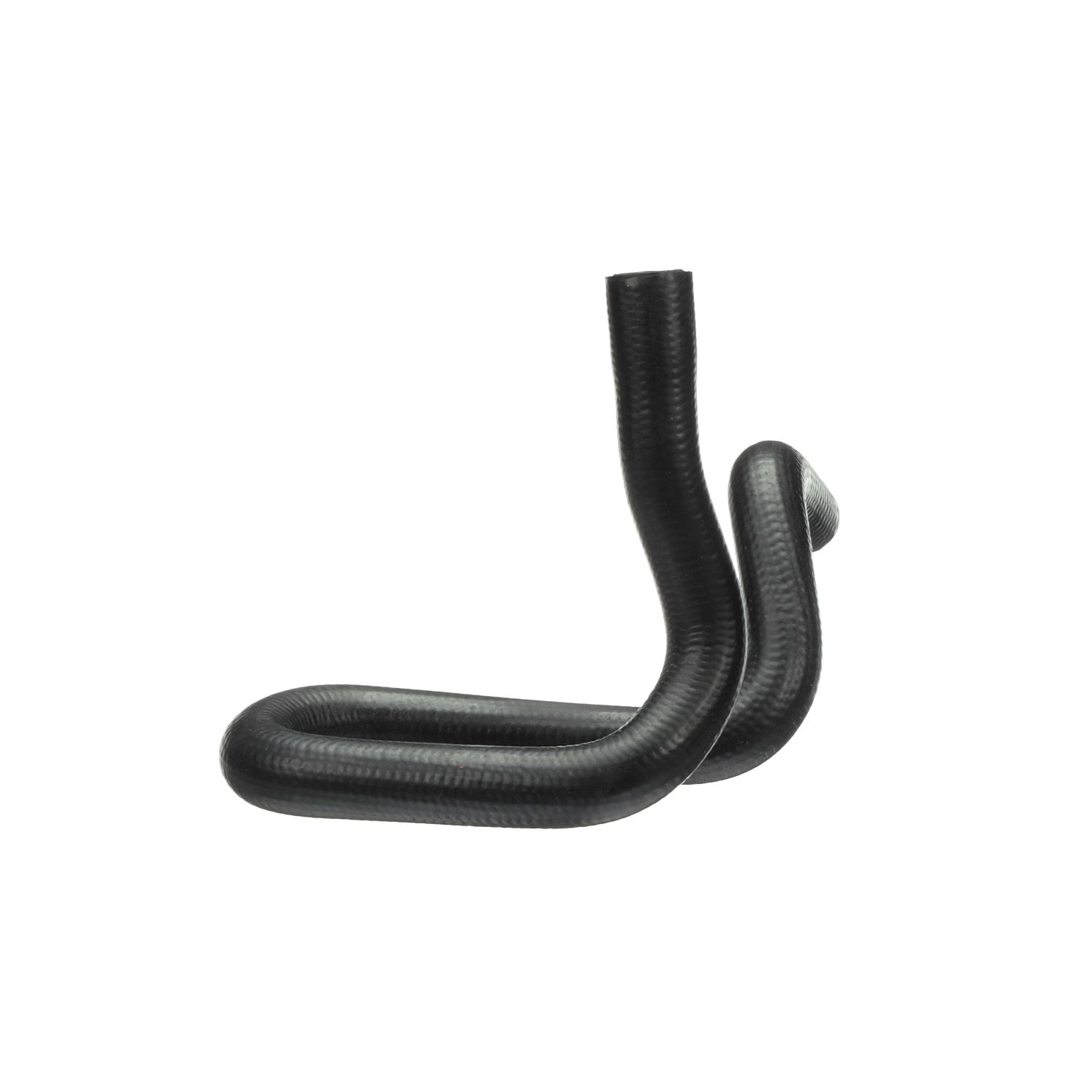

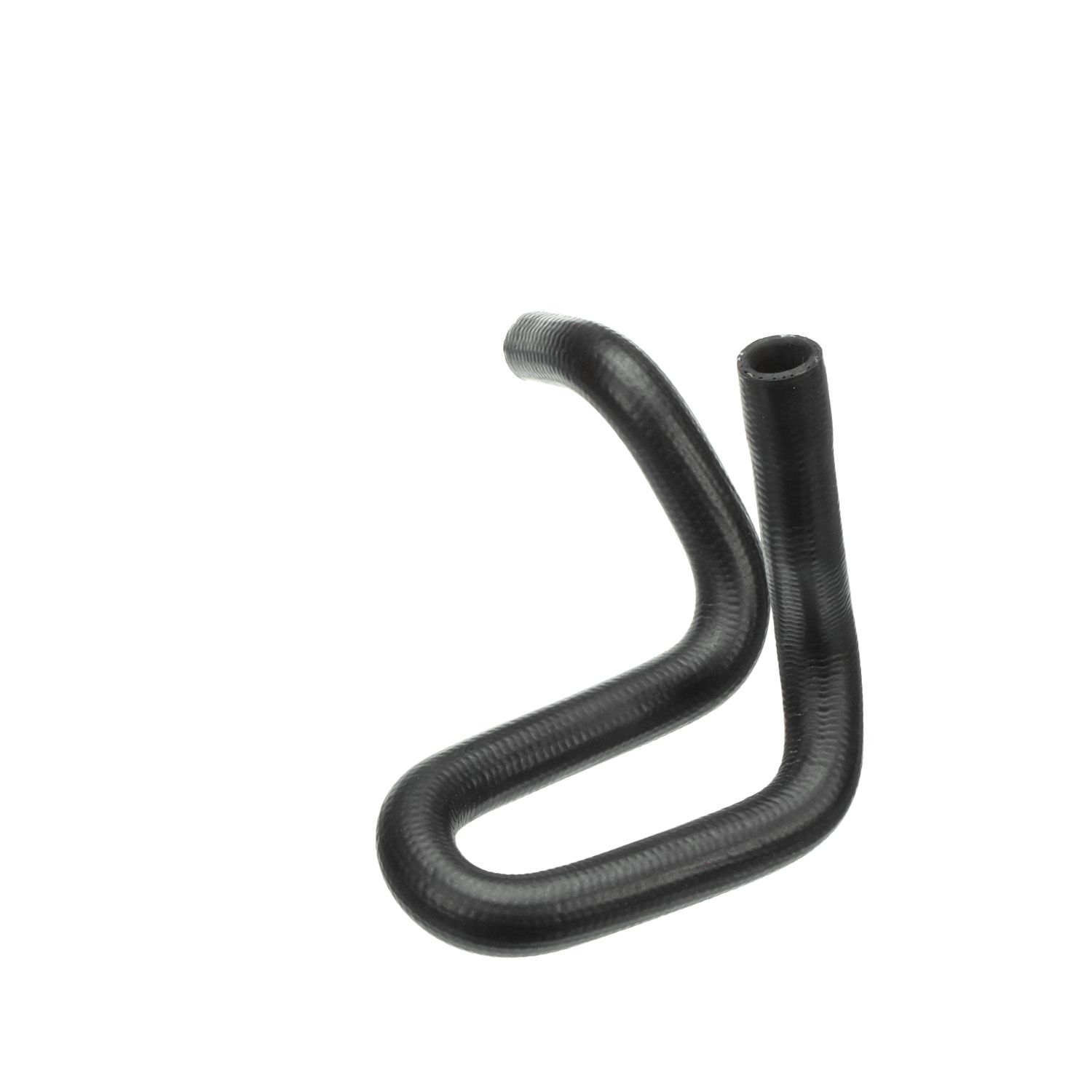

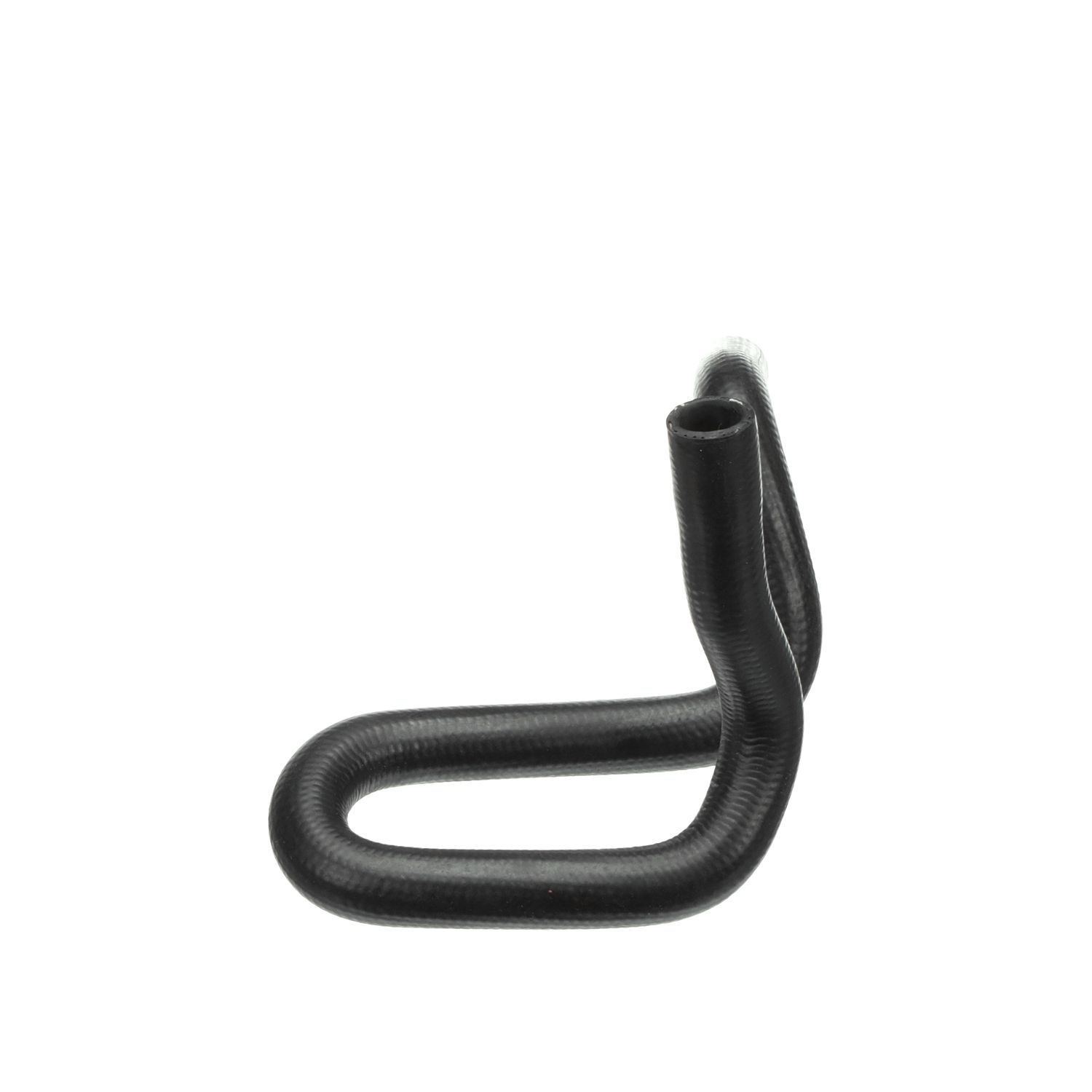

Premium Molded Heater Hose

Warehouse	Avl.Qty

Gates Small I.D. Molded Coolant Hose is factory-molded, OEM style hose to fit today’s smaller, tighter-fitting engine compartments. It can be used for coolant, water and air applications, also approved for marine applications. Has all the quality features of Gates molded coolant hose and similar to OEM specifications. Engineered to resist electrochemical degradation – the leading cause of hose failure. EPDM tube, synthetic fiber knit reinforcement, EPDM cover. Meets SAE 20R3 Type EC Class D-1 and D-2 specifications. Temperature Range: -40 Deg. F to 275 Deg. F (-40 Deg. C -135 Deg. C). Note: Gates recommends replacing hose clamps each time a new coolant hose is installed. Caution: Do not use for fuel or oil transfer applications.

Product Specifications
Centerline Length	24.3
Centerline Length	617
Branch Quantity	0
End 1 Inside Diameter	.63
End 1 Inside Diameter	16
End 2 Inside Diameter	.71
End 2 Inside Diameter	18
Quick Connect Fitting Quantity	0
Material	EPDM
Molded	Yes

Literature coming soon
