350-0145

Marine Fuel Feed and Vent Hose - Type A

Warehouse	Avl.Qty

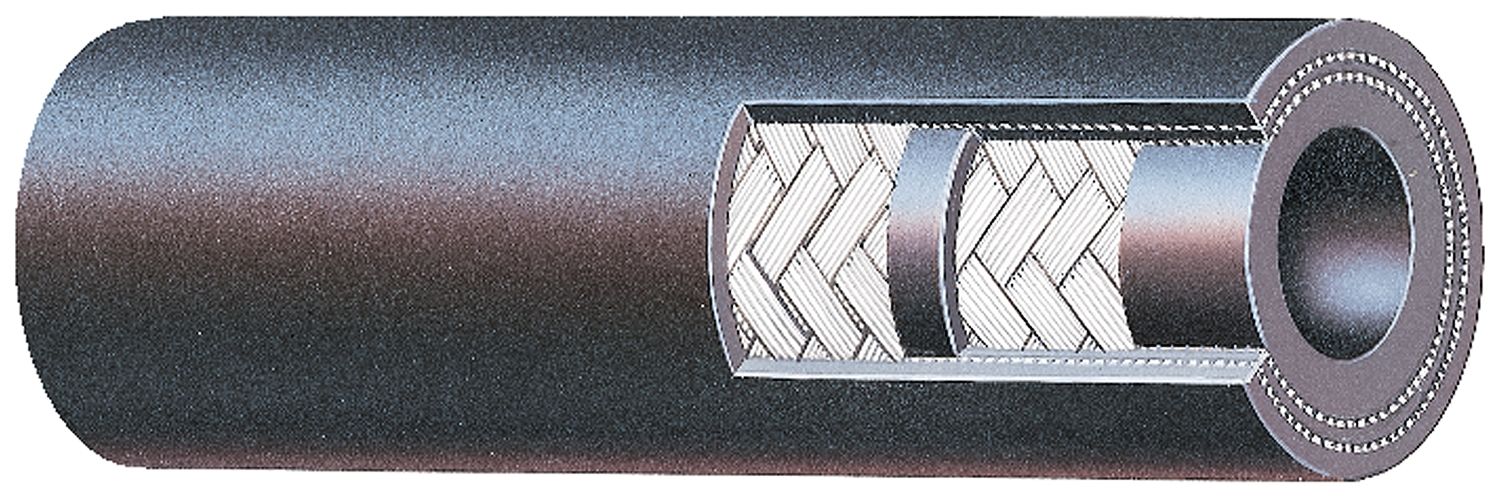

This top quality, multi-purpose hose is specifically designed to provide ﬂexible connections between rigid fuel distribution lines and engine and is excellent for vent lines and emission control systems. Braided construction provides greater kink resistance and ﬂexibility than spiral construction hose. Suitable for marine diesel fuel and gasohol blends of ethanol, methanol and ethers up to 10 percent. Heat and oil resistant Type A Chloroprene cover. Type C Nitrile tube with braided, high-tensile synthetic textile cord reinforcement. Meets SAE J1527 Style R1 Class 1 and USCG Type A requirements. Temperature Rating: -20 Deg. F to 212 Deg. F (-29 Deg. C to 100 Deg. C); Biodiesel B100: up to +125 Deg. F (52 Deg. C).

Product Specifications
Type	Marine Fuel Feed & Vent Hose (Type A)
Centerline Length	25
Centerline Length	7.62
End 1 Inside Diameter	.25
End 1 Inside Diameter	6
End 2 Inside Diameter	.25
End 2 Inside Diameter	6
Working Pressure	40

Literature coming soon
