3204-1301

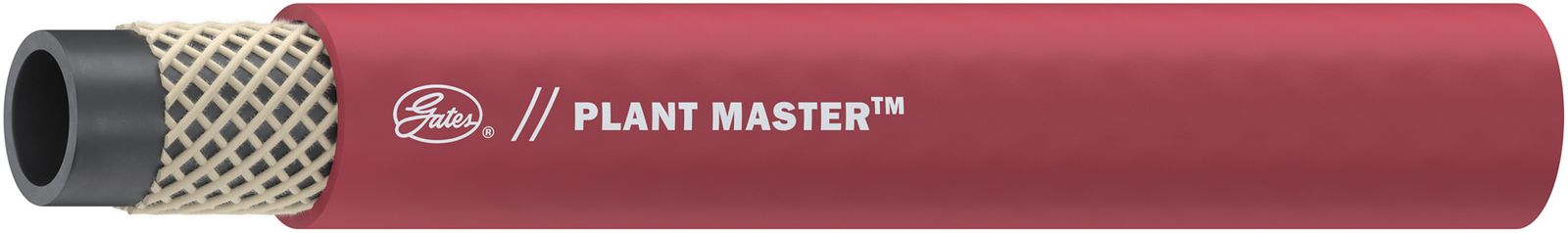

Plant Master 150-200 Hose

Warehouse	Avl.Qty

Plant Master hoses are used in air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. For use with GLX Couplings [G44 Series] and Power Crimp Couplings. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying and can handle mild chemicals such as dilute solutions of herbicides. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C). NOTE: For more detailed information, refer to the Gates Industrial Hose catalog 39496-000.

Product Specifications
Inside Diameter	6.4
Coupling Recommendation	GLX, Power Crimp
Color	Red
Cover Type	Type P - Limited Oil Resistant, Perforated
Cover Material	Synthetic Rubber - EPDM - Type P
Reinforced	Synthetic, High-Tensil Textile Cord
Hose Material	EPDM - Type P
Tube Description	Black, Limited Oil-Resistant, Synthetic Rubber
Bending Radius	3
Outside Diameter	12.7
Outside Diameter	.5
Type	Plant Master (150 - 200)
Inside Diameter	.25
Dash Size	4
Length	500
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Vacuum Rating	30
Burst Pressure	600
Maximum Working Pressure	13.8
Maximum Working Pressure	200
Type	Air & Multi-Purpose Hose
Industrial Description	1/4X500FT PLANT MASTER 200 RED
