3205-0040

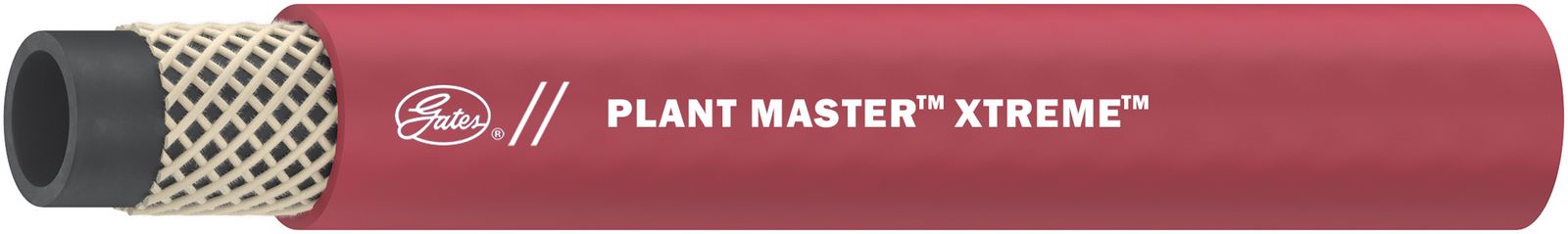

Plant Master XTreme Hose (250 - 315)

Warehouse	Avl.Qty

Plant Master Xtreme hoses are recommended for applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212 Deg. F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120 Deg. F). For use with GLX Couplings [G44 Series] and Power Crimp Couplings. Excellent resistance to weather and ozone. Red Modified Nitrile Type C2 cover with black Nitrile Type C tube. Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C). NOTE: For more detailed information, refer to the Gates Industrial Hose catalog 39496-000.

Product Specifications
Inside Diameter	19.1
Coupling Recommendation	GLX, Power Crimp
Color	Red
Cover Type	Type C2 - Medium Oil-Resistance
Cover Material	Synthetic Rubber - Modified Nitrile - Type C2
Reinforced	Synthetic, High Tensile Textile Cord
Hose Material	Nitrile - Type C
Tube Description	Black, High Oil-Resistant, Synthetic Rubber
Bending Radius	5
Outside Diameter	29.2
Outside Diameter	1.15
Type	Plant Master XTreme (250 - 315)
Inside Diameter	.75
Dash Size	12
Length	500
Temperature Rating	-40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Vacuum Rating	20
Burst Pressure	1000
Maximum Working Pressure	17.2
Maximum Working Pressure	250
Type	Air & Multi-Purpose Hose
Industrial Description	3/4X500FT PLANT MASTER XTREME 250
