3206-3968

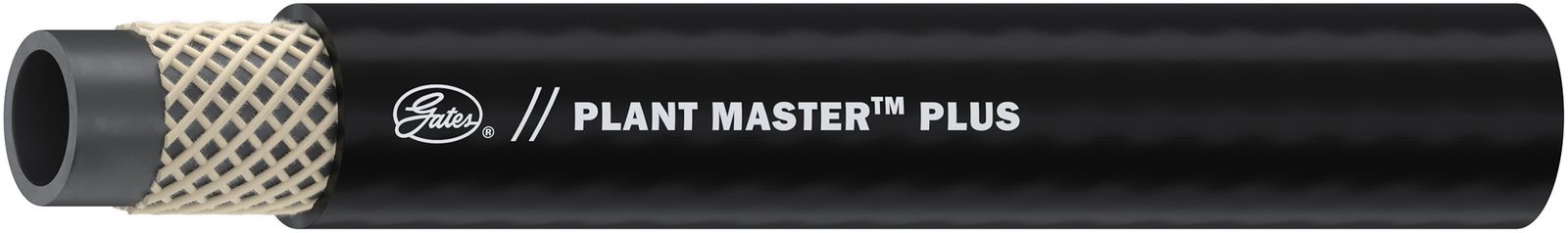

Plant Master Plus Hose (200 - 300)

Warehouse	Avl.Qty

Plant Master Plus Lock-on hoses are used in applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. For use with GLX Couplings [G44 Series]. Red EPDM Type P cover; Type D3 (specially compounded elastomer) for 2 in. black cover only. All sizes through 1/2 in. have perforated cover. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C). NOTE: For more detailed information, refer to the Gates Industrial Hose catalog 39496-000.

Product Specifications
Inside Diameter	50.8
Coupling Recommendation	GLX, Power Crimp
Color	Black
Cover Type	Type D3 - Limited Oil-Resesitant
Cover Material	Synthetic Rubber - EPDM - Type D3
Reinforced	Synthetic, High-Tensil Textile Cord
Hose Material	Elastomer Compound - Type B1
Tube Description	Black, Medium Oil-Resistance, Synthetic Rubber
Bending Radius	16.5
Outside Diameter	65
Outside Diameter	2.56
Type	Plant Master Plus (200 - 300)
Inside Diameter	2
Dash Size	32
Length	100
Temperature Rating	-40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Vacuum Rating	4
Burst Pressure	600
Maximum Working Pressure	13.8
Maximum Working Pressure	200
Type	Air & Multi-Purpose Hose
Industrial Description	2X100FT PLANT MASTER PLUS 200
